Wouxun KG-V55 Tri-Band With Repeater

$249.00

Wouxun KG-V55 Tri-Band With Repeater

Available on backorder

Add to Wishlist
Compare
Category:

Description

Wouxun KG-V55 Tri-Band With Repeater

Bands: WCDMA/3G +136-174M/400-480M

Has built in Repeater which allows crosslink connection between existing RF system to PTT over Data system

Large color screen
Public Network , WCDMA 2100X900MHz
Twin Modes & Tri Bands
Cross-Mode Repeat , Simcard Radio<->Analogue Radio, Analogue Radio<->Analogue Radio
Simultaneous Reception among three bands
Duplex work among three bands (one band TX, another bands RX)
200 contacts , Caller ID
Offset , Shift Frequency in Analogue Mode
UHF/VHF, VHF/UHF cross-band Repeat
VOX Function
Multi-definition for side keys
DTMF Encode and Decode
Memory Channels 999
Selective Calls, Group Calls, All Calls
SOS Emergency Alarm
Lamp , Backlight , stopwatch
Talk-Around
Compander and scrambler



KG-V55





General
   Audio Power ≤500mW
   Operating Temperature -20℃～+40℃
   Voltage 3.7VDC
   Weight 300 g
   Size 136 x 59 x 34 MM
Public Network
   Work Band WCDMA 2100X900MHz
   Max TX Power 23~25dbm @AII up bits
   RX Sensitivity -106dbm
Analogue
  Frequency Range    Suitable for different countries or areas
136-174 & 400-470MHz (RX/TX)
136-174 & 400-480MHz (RX/TX)
144-148 & 430-440MHz (RX/TX)
76-108MHz (FM , RX , Setp 100K)
   Setp 5K/6.25K/12.5K/25K/50K/100K
   Memory Channels 999
   Mode F2D/F3E
   Antenna Impedance 50Ω
Analogue Transmitter
Wide Narrow
   Adjacent Channel Selectivity ≤ 70dB ≤ 60dB
   Inter-Modulation ≤ 65dB ≤ 65dB
   Spurious Response ≤ 70dB ≤ 70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Squelch Sensitivity ≥45dB ≥40dB
   Audio Distortion ≤5%
   Output Power UHF 2.5W , VHF 3.0W
Analogue Receiver
Wide Narrow
   Modulation 16K F3E 11K F3E
   Effective Radiation Power ≥70dB ≥60dB
   Spurious Response ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Offset ±5KHZ ±2.5KHZ
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Sensitivity UHF : 0.25uV(12dB SINAD)
VHF : 0.25uV(12dB SINAD)
TECHNICAL SPECIFICATION

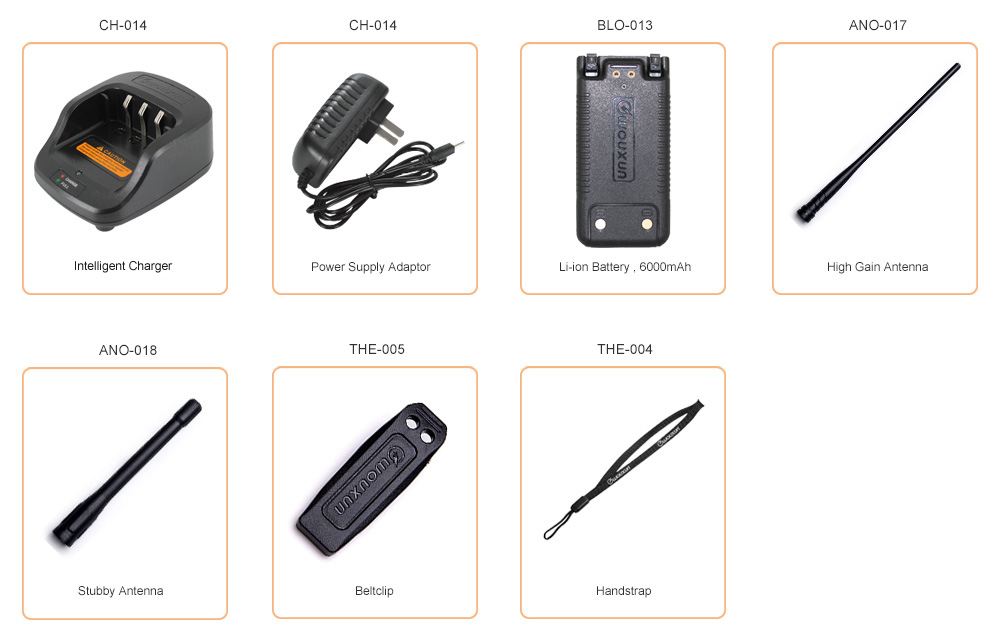

STANDARD ACCESSORY
kg-958 accessory
